Product

---

LSLV-S100 Series



1. S100 - Standard

200V(1-phase) - (0.4kW~2.2kW)

200V(3-phase) - (0.4kW~15.0kW)

400V - (0.4kW~75.0kW)



2. S100 - Built-in EMC(EU)

200V(1-phase) - (0.4kW~2.2kW)

400V - (0.4kW~4.0kW)





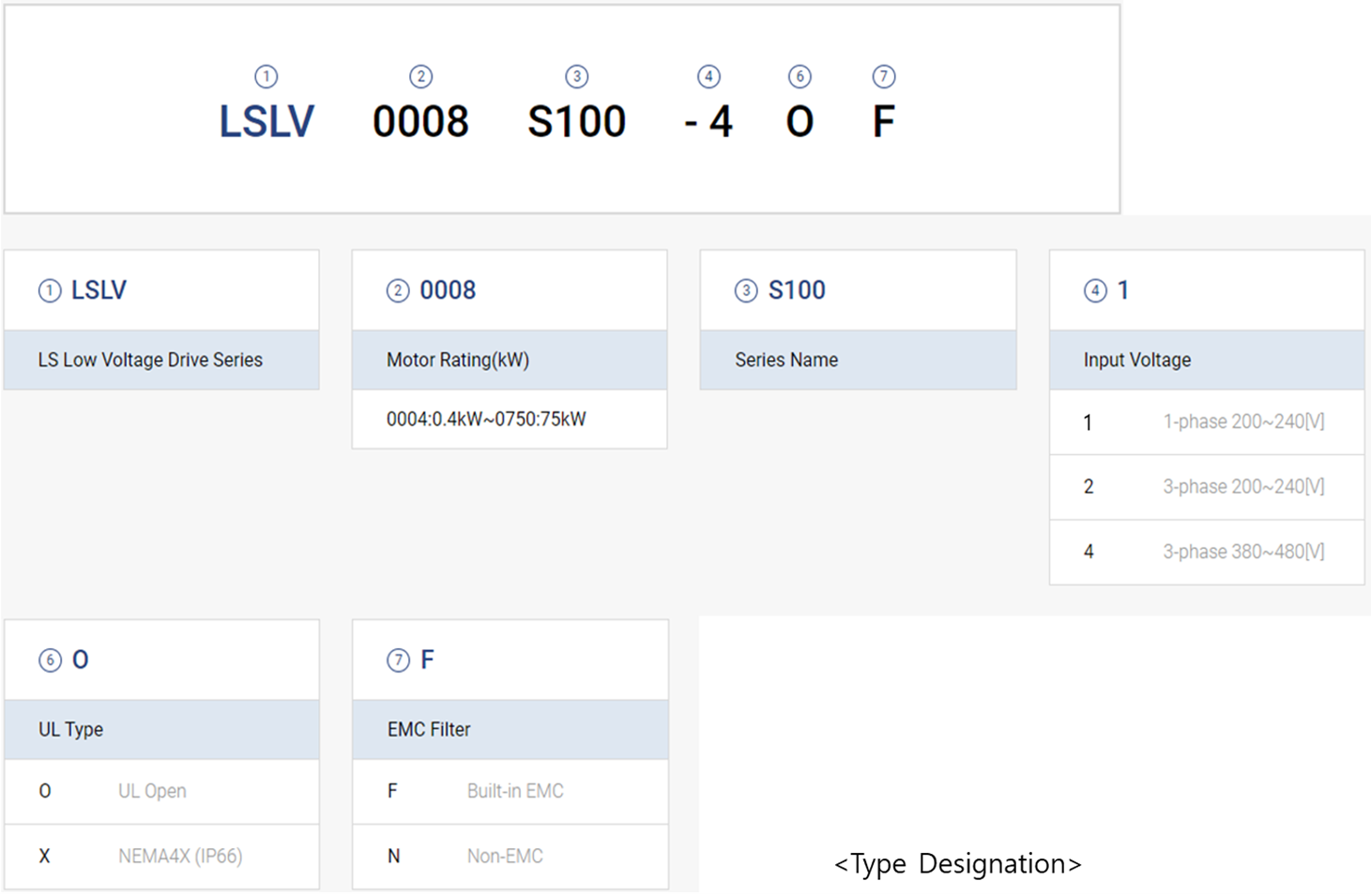

	Standard
Frame	200V	400V
Frame A-1	LSLV0004S100-2	LSLV0004S100-4
Frame A-2	LSLV0004S100-1
	LSLV0008S100-2	LSLV0008S100-4
Frame B-1	LSLV0008S100-1
	LSLV0015S100-2	LSLV0015S100-4
Frame B-2	LSLV0015S100-1
	LSLV0022S100-2	LSLV0022S100-4
Frame C	LSLV0022S100-1
	LSLV0037S100-2	LSLV0037S100-4
	LSLV0040S100-2	LSLV0040S100-4
Frame D	LSLV0055S100-2	LSLV0055S100-4
	LSLV0075S100-2	LSLV0075S100-4
Frame E	LSLV0110S100-2	LSLV0110S100-4
		LSLV0150S100-4
Frame F	LSLV0150S100-2
		LSLV0185S100-4
		LSLV0220S100-4
Frame G		LSLV0300S100-4
Frame H		LSLV0370S100-4
		LSLV0450S100-4
Frame i		LSLV0550S100-4
		LSLV0750S100-4



                                    < Table 1. S100-Standard List >











	Built-in EMC(EU)
Frame	200V	400V
Frame A	LSLV0004S100-1F	LSLV0004S100-4F
		LSLV0008S100-4F
Frame B	LSLV0008S100-1F
	LSLV0015S100-1F	LSLV0015S100-4F
		LSLV0022S100-4F
Frame C	LSLV0022S100-1F
		LSLV0037S100-4F
		LSLV0040S100-4F



                                    < Table 2. S100-Built-in EMC(EU) List >
