Product

---

G100 Remote keypad / G100 Remote keypad(Retrofit)



G100 Remote keypad(Retrofit) : iG5A Remote keypad Size





LSLV-G100 Series



1. G100

200V - (0.4kW~22.0kW)

400V - (0.4kW~22.0kW)



2. G100C

200V - (0.4kW~4.0kW)

400V - (0.4kW~4.0kW)

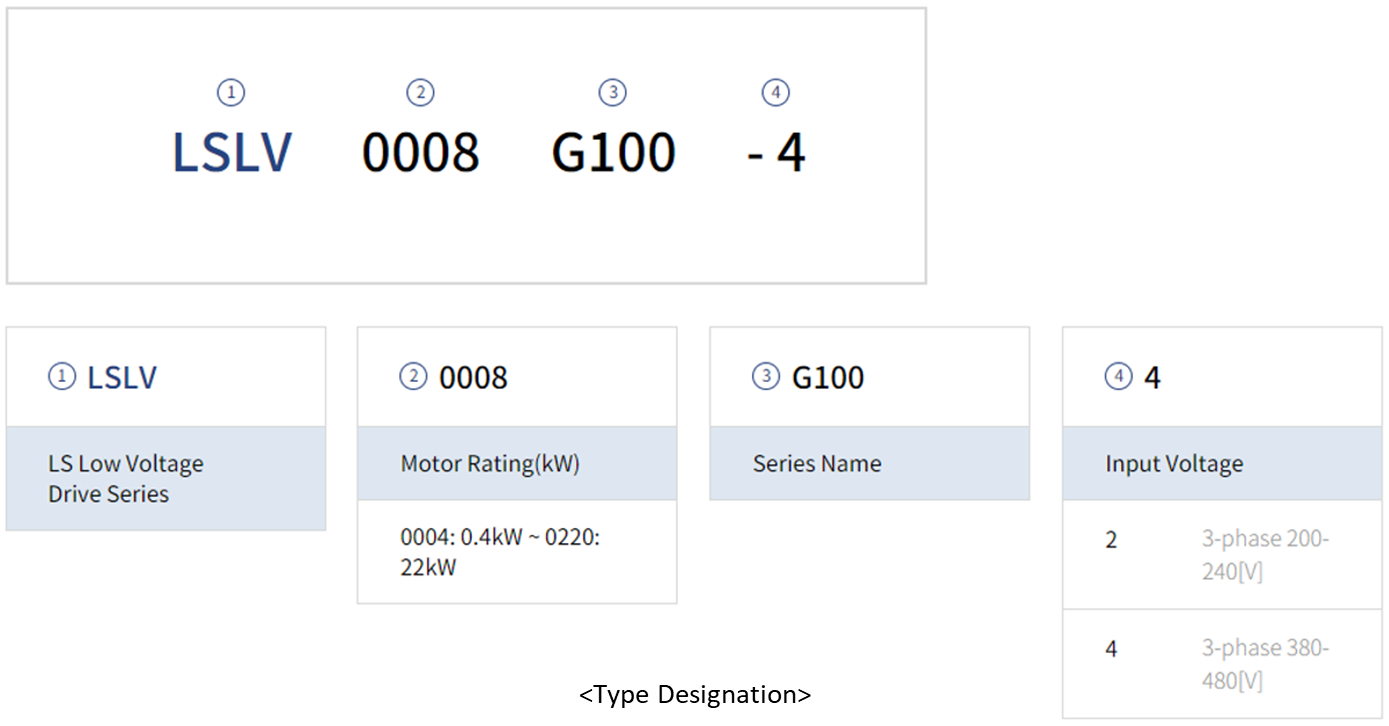

	G100
Frame	200V	400V
Frame A	LSLV0004G100-2	LSLV0004G100-4
	LSLV0008G100-2	LSLV0008G100-4
Frame B	LSLV0015G100-2	LSLV0015G100-4
	LSLV0022G100-2	LSLV0022G100-4
Frame C	LSLV0040G100-2	LSLV0040G100-4
Frame D	LSLV0055G100-2	LSLV0055G100-4
	LSLV0075G100-2	LSLV0075G100-4
Frame E	LSLV0110G100-2	LSLV0110G100-4
		LSLV0150G100-4
Frame F	LSLV0150G100-2
		LSLV0185G100-4
		LSLV0220G100-4
Frame G	LSLV0185G100-2
	LSLV0220G100-2



                           < Table 1. G100 List >











	G100C
Frame	200V	400V
Frame A-1	LSLV0004G100C-2	LSLV0004G100C-4
Frame A-2	LSLV0008G100C-2	LSLV0008G100C-4
Frame B	LSLV0015G100C-2	LSLV0015G100C-4
	LSLV0022G100C-2	LSLV0022G100C-4
Frame C	LSLV0040G100C-2	LSLV0040G100C-4



                          < Table 2. G100C List >
